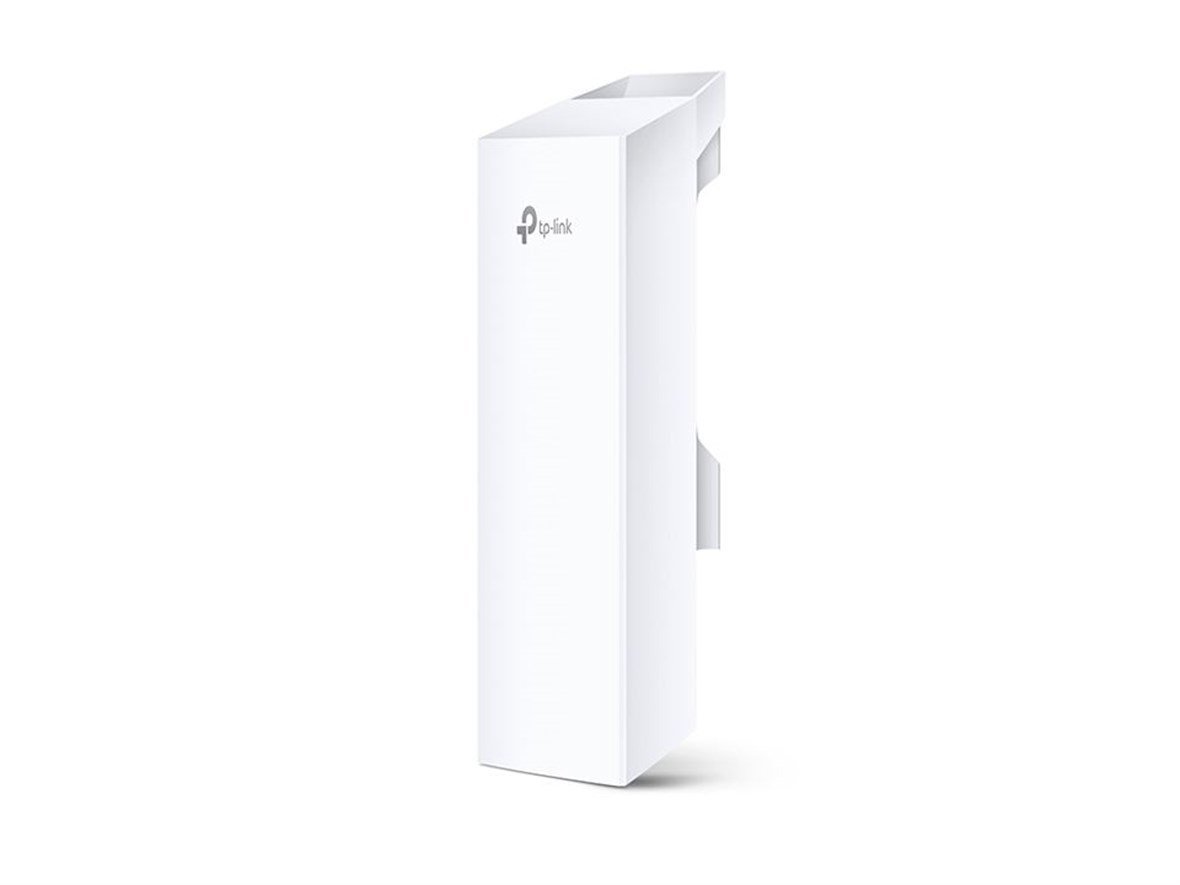

CPE 10
300Mbps GHz Dış Mekan Access Poin
DONANIM ÖZELLİKLERİ
İşlemci
Qualcomm A heros En erprise AR93 0B 60MHz CPU, MIPS 4Kc
Bellek
64MB DDR2 RAM, 8MB Flash
Arabirim
1 10/100Mbps Shielded E herne Por (LAN0,Passive PoE in)
1 10/100Mbps Shielded E herne Por (LAN1, Passive PoE Pass hrough)
1 Grounding Terminal
1 Rese Bu on
Boyu lar ( W x D x H )
224 x 9 x 60 mm
An en Tipi
Buil -in 13dBi 2x2 Dual-polarized Direc ional An enna
Beam Wid h: 4 ° (H-Plane) / 30° (E-Plane)
No e: For more de ails, please refer o da ashee
Koruma
1 KV ESD Pro ec ion
6000V Ligh ning Pro ec ion
Güç Tüke imi
13 Wa s Max
No e: When deployed using Passive PoE, he power drawn from he power
source will be higher by some amoun depending on he leng h of he
connec ing cable.
Güç Kaynağı
Passive Power over E herne via LAN0 (+4, pins; - ,8pins)
Vol age range: 16-2 VDC
Enclosure
Ou door ASA s abilized plas ic ma erial
IPX wa erproof Cer ifica ion
KABLOSUZ ÖZELLİKLERİ
Kablosuz S andar ları
IEEE 802.11a/n (wi h Pharos MAX ream disabled)
Kablosuz Hızı
Up o 300Mbps (40MHz,Dynamic)
Up o 144.4Mbps (20MHz,Dynamic)
Up o 2.2Mbps (10MHz,Dynamic)
Up o 36.1Mbps ( MHz,Dynamic)
Özel Pro okol
TDMA Mode (wi h Pharos MAX ream enabled)
Frekans
.1 ~ .8 GHz
No e: Available opera ing frequency may vary depending on he
limi a ions of he coun ries or regions in which he device is used.
Alıcı Hassasiye i
• 802.11a:
4M: - dBm, 48M: - 6dBm, 36M: -83dBm, 6-24M: -9 dBm
• 802.11n:
MCS1 : - 3dBm, MCS14: - 4dBm, MCS13: - 6dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS : - 3dBm,
MCS6: - 4dBm, MCS : - 6dBm, MCS4: -80dBm,
MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm
İle im Gücü
2 dBm/ 00mw (Adjus able power by 1dBm)
No e: Maximum ransmission power may vary across differen channels
depending on he limi a ions of he coun ries or regions in which he
device is used.
YAZILIM ÖZELLİKLERİ
Kablosuz Konfigürasyonlar
Pharos MAX ream TDMA Technology
802.11a/n Modes
Selec able Channel Wid h: /10/20/40MHz
Au oma ic Channel Selec ion
Transmission Power Con rol
Dynamic Frequency Selec ion (DFS)
WDS Enable/Disable
Securi y: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryp ion, 64/128/1 2-
bi WEP Encryp ion
SSID Broadcas Enable/Disable
Mul i-SSID wi h VLAN Tagging (AP mode only)
Dis ance/ACK Timeou Se ing
Wireless MAC Address Fil er
Wireless Advanced:
> Beacon In erval/RTS Threshold/Fragmen a ion
>Threshold/DTIM In erval/AP Isola ion/Shor GI/Wi-Fi Mul imedia
Yöne im
Discovery and Remo e Managemen via Pharos Con rol applica ion
HTTP/HTTPS Web-based managemen
Sys em Log
SNMP Agen (v2c)
Ping Wa ch Dog
Dynamic DDNS
SSH Server
Sis em Araçları
Wireless Signal Quali y Indica ors:
Signal S reng h/Noise/Transmi CCQ/CPU/Memory
Moni ors: Throughpu /S a ions/In erfaces/ARP/Rou es/WAN/DHCP
Spec rum Analyzer
Speed Tes
Ping
Tracerou e
Sis em Düzeyindeki Op imizasyonlar
Op imized IGMP Snooping/Proxy for mul icas applica ions
Hardware wa ch dog
DİĞERLERİ
Ser ifika
CE, FCC, RoHS, IPX
Pake İçeriği
Ou door Wireless CPE
24V 1A Passive PoE Adap er
Pole Moun ing S raps
AC Power Cord
Ins alla ion Guide
Sis em Gereksinimleri
Microsof Windows 98SE, NT, 2000, XP, Vis a™ or Windows 8, Windows ,
MAC OS, Ne Ware, UNIX or Linux.
No e: We recommend you o use one of following Web browsers for an
improved user experience: Google Chrome, Safari, and Firefox. IE
browsers are no recommended.
Or am
Opera ing Tempera ure: -30°C~ 0°C (-22?~1 8?)
S orage Tempera ure: -40?~ 0? (-40?~1 8?)
Opera ing Humidi y: 10%~90% non-condensing
S orage Humidi y: %~9 % non-condensing
POE ADAPTÖR ÖZELLİKLERİ
Arabirimler
1 AC Jack wi h Ear h Ground
1 10/100Mbps Shielded E herne Por (Power + Da a)
1 10/100Mbps Shielded E herne Por (Da a)
Boyu lar (H X W X D)
110* *33. mm
Bu on
Remo e Rese Bu on
Çıkış
24VDC, 1.0A Max
+4, pins; - , 8pins. (Suppor up o 60m Power over E herne )
Çıkış Vol ajı
24VDC(+4, pins; - ,8pins)
Giriş
100-240VAC, 0/60Hz
Giriş Akımı
0.8A Max @ 100VAC
Giriş Vol ajı
100VA~240VAC @ 0Hz~60Hz
Güç Durum LED'leri
0~0.8A: Green
0.8A~1.0A: Red
Ser ifikalar
CE/FCC/UL/IC/GS/PSB/C- ick/SAA/S-Mark/KC-mark
Verimlilik
>80%
